Map View - Asset Clusters (Health & Utilization)
When assets are close together at the current zoom level, they group into a cluster to keep the map readable. A cluster displays a count showing how many assets are grouped together, along with a colored ring around it. The ring's proportions match the status breakdown, so you can gauge the mix at a glance before you even hover.
Switching between Health and Utilization

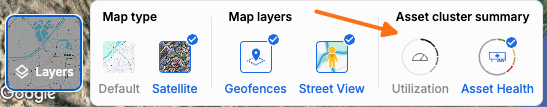

Clusters can summarize assets by Health or by Utilization, depending on which mode is selected. To switch, click Layers in the bottom-left corner of the map, then choose Asset Health or Utilization under Asset cluster summary. This setting applies to every cluster on the map, not just the one you're viewing, and it's only available if the utilization feature is enabled for your organization.
Clusters by Health
In health mode, the cluster count is broken down into:
Healthy – assets with no active issues
Warning – assets with minor alerts
Critical – assets requiring immediate attention
Unknown – assets with no recent data
Cluster by Utilization
In utilization mode, the same cluster is broken down into utilization bands instead:
Low
Below Normal
Normal
High
Unknown
Interacting with Clusters
Hover over a cluster to see the full breakdown in a tooltip. Click a cluster to zoom in and expand it. The map pans to the cluster's location and adjusts the zoom level to show individual assets where possible.
